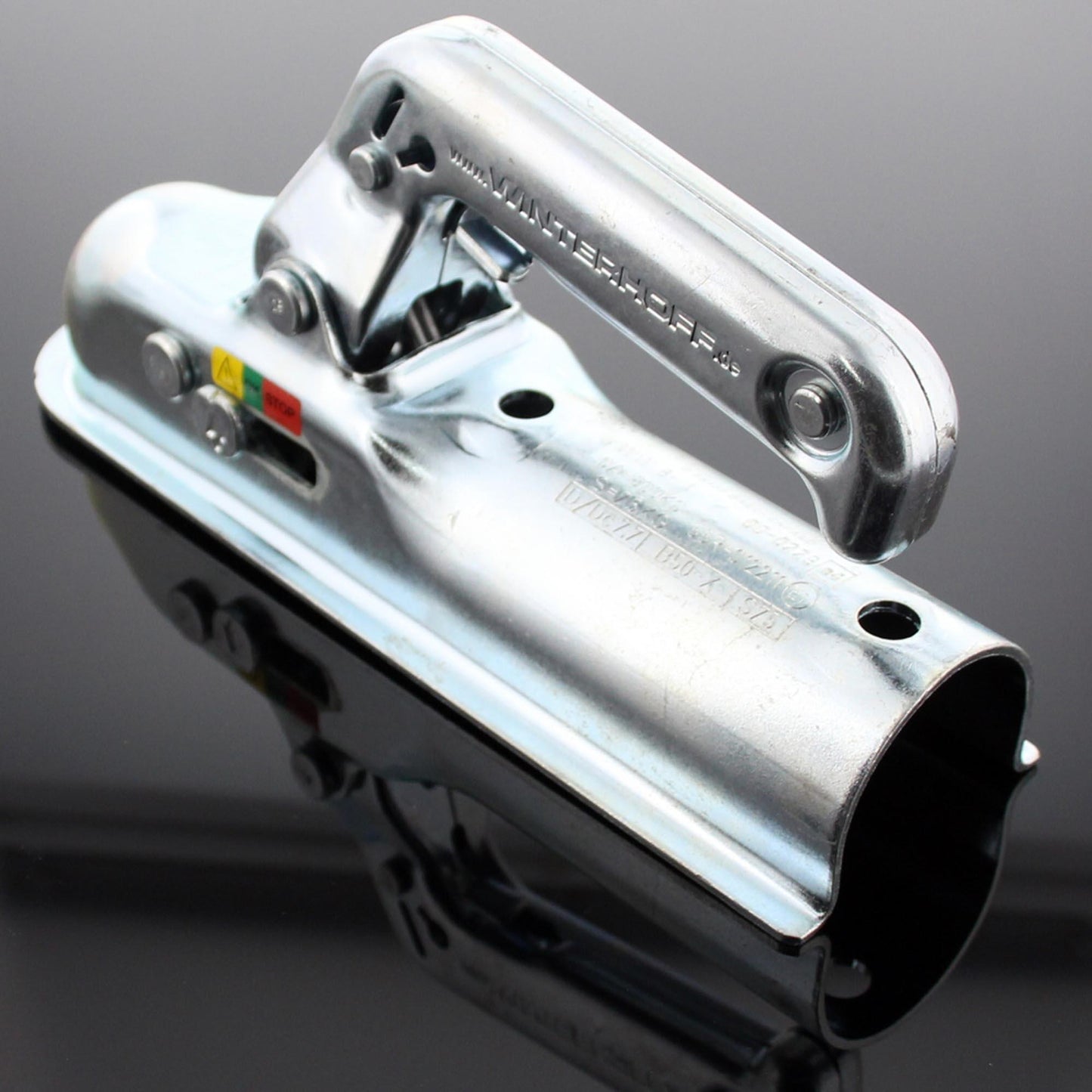

Winterhoff WW8-A hitch 800 kg

Winterhoff trailer ball coupling for 50mm drawbar

Ball diameter Ø50 mm

Towing capacity: 800kg

Type WW8-A

max. drawbar load S = 75 kg

Description:

Ball couplings for trailers with overrun devices up to 800 kg,
for Ø50 mm drawbar round / drawbar, ball diameter Ø50mm

Details:

• max. total trailer weight GA = 800 kg
• max. drawbar load S = 75 kg
• D value = 7.7 kN
• Weight approx. 1,400g
• Drawbar connection: Ø 50 mm
• Vertical screw connection (two screws from top to bottom)

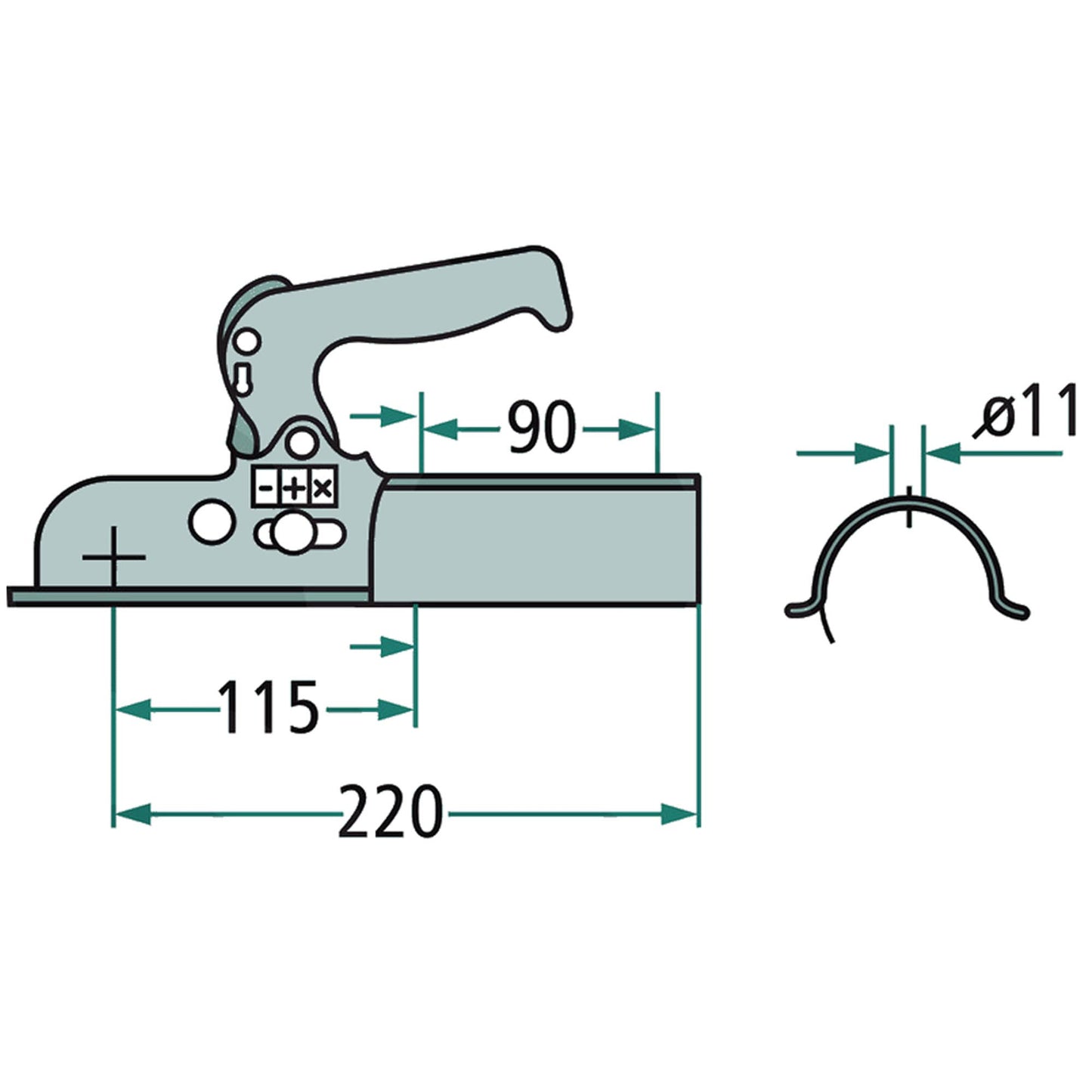

• Hole spacing: approx. 90 mm
• Bore Ø approx. 11 mm
• EC approval mark 00-0229 e4
• Material: galvanized sheet steel
• practical one-hand operation
• Handle with integrated safety device prevents accidental opening
• with wear indicator

If you have any further questions, please contact us.
