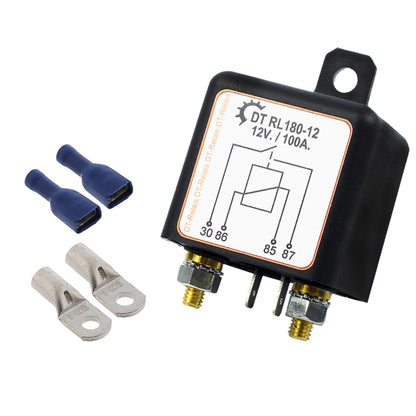

Separating relay DT RL180/12 incl. 2 eyelets up to 10mm² and 2 cable lugs

Separating relay DT RL180/12 incl. 2 eyelets up to 10mm² and 2 cable lugs

Regular price 7,51 €*
Regular price 0,00 €* Sale price 7,51 €*
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock


DT RL180-12 cut-off relay

12 volts / 100 amps continuous load

12 volts / 180 amps peak load

incl. 2 flat plugs/cable lugs and 2 eyelets


Purpose:

If a second or additional battery is to be installed in a vehicle, the installation of an isolating relay is highly recommended. The purpose of installing this relay is to disconnect the two batteries when the engine is switched off. The second battery is only switched on when the ignition is switched on. In this way, the batteries cannot discharge one another if they are not used for a long time. When the engine is running, both batteries are then charged via the alternator.


Areas of application:

  • CarHifi
  • boats
  • caravans and camping
  • solar applications
  • Etc.

Details isolating relay:

  • Continuous load: 100 amps
  • Peak load: 180 amps (up to 3 seconds)
  • L x W x H mm: 45 x 45 x 45 mm
  • with holding tab at the top
  • Connections: 2x M6 screw connections + 2x 6.3mm flat plug connections

Details flat connector:

  • high quality
  • expanded PVC insulation
  • Dimensions: 6.3mm
  • Color code: blue
  • For cable nominal cross-section: 1.5 to 2.5 mm²

Details eyelet:

  • Material: copper
  • electro galvanized
  • for cable Ø: 10mm² AWG8
  • with viewing hole
  • not isolated

Dimensions eyelet:

  • ØE: approx. 6.4mm
  • W: approx. 11.9mm
  • W: about 11.5mm
  • L: approx. 27.5mm
  • D: about 6.9mm

A circuit diagram / installation plan is included in the scope of delivery !!!


Weitere Produktinfos

Hersteller TMN-Handels GmbH
Artikelnummer 17115
EAN 4260517158274
Versandgewicht 0,09 kg
Herstellerangaben TMN-Handels GmbH
Gettorfer Str. 1g
24251 Osdorf, Deutschland
Schleswig-Holstein
