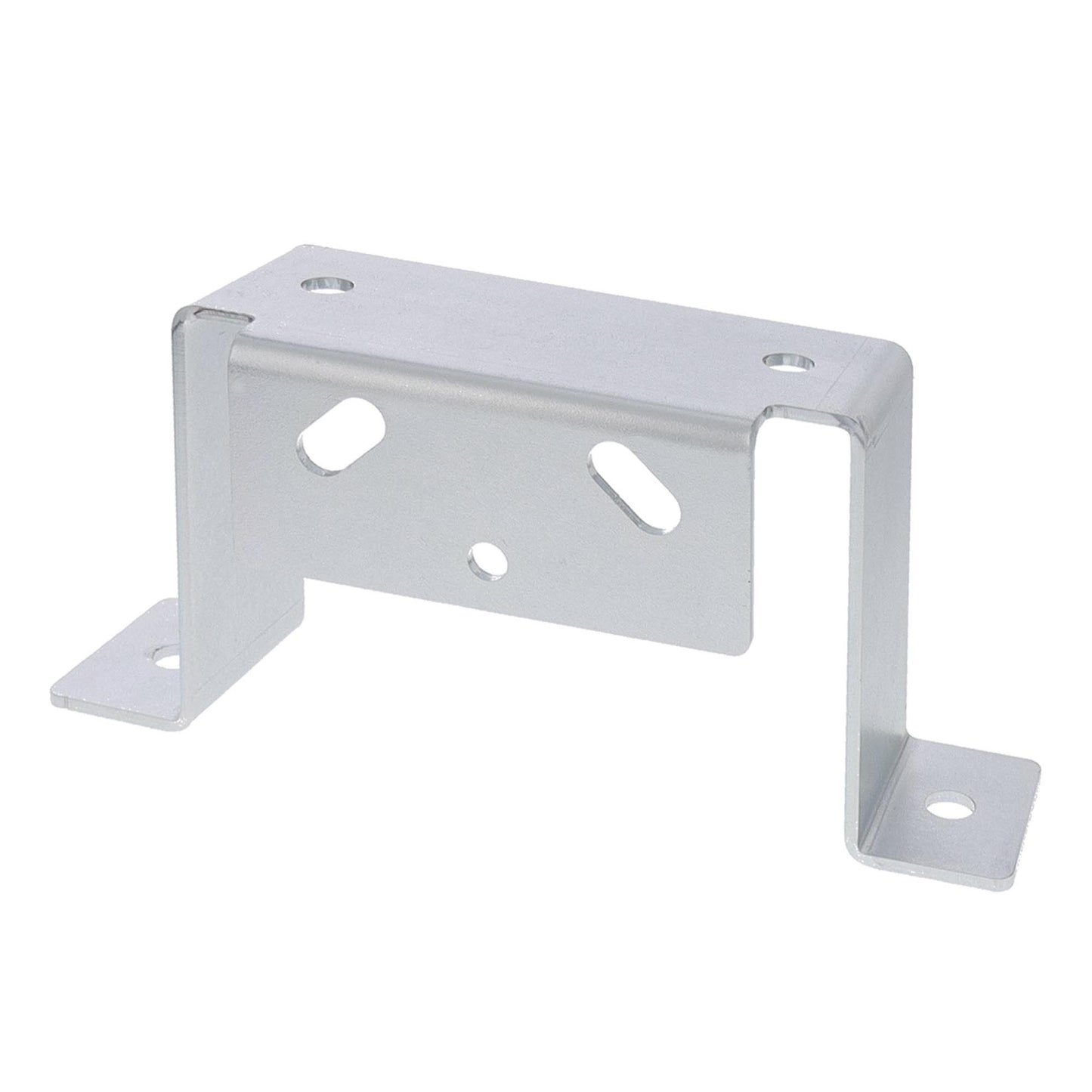

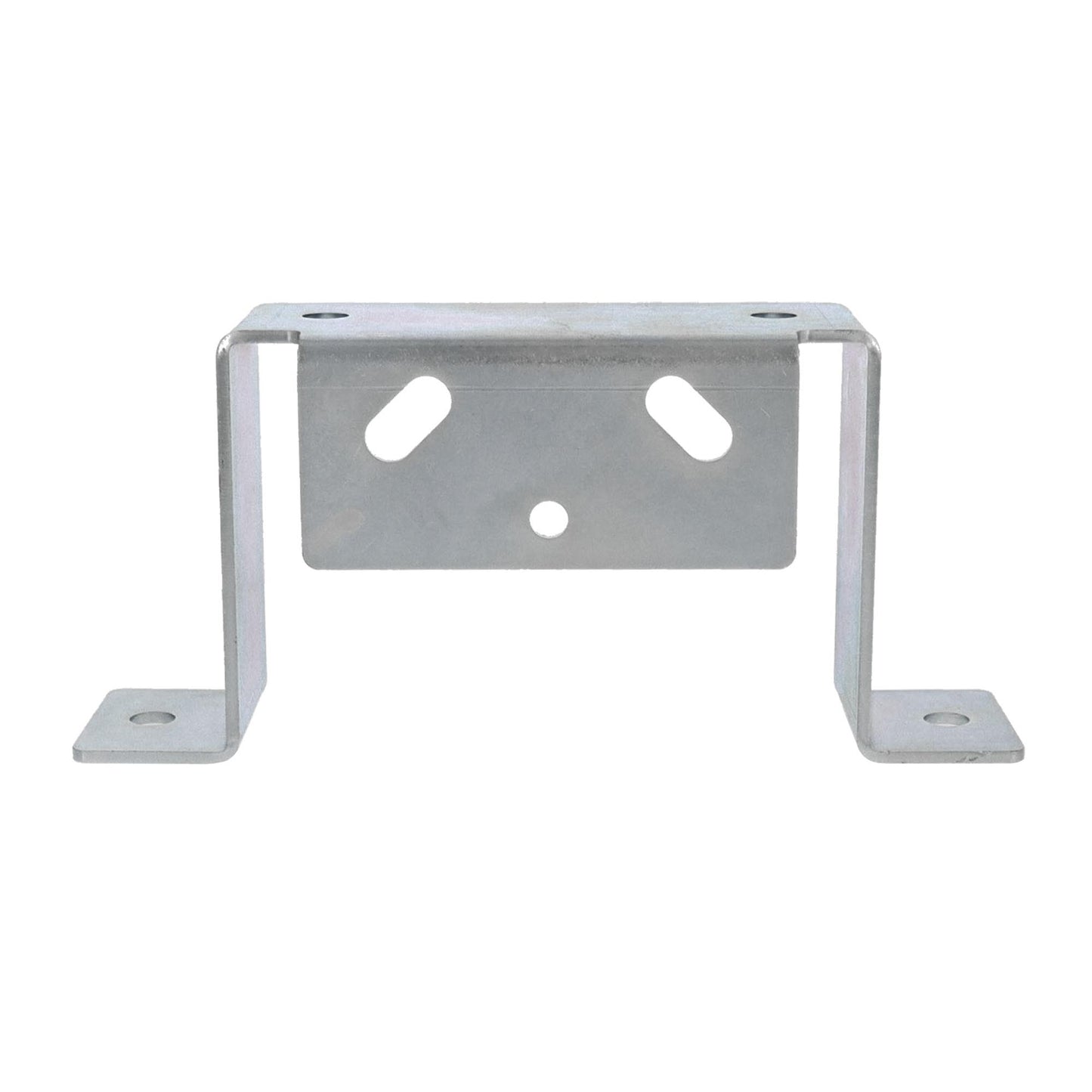

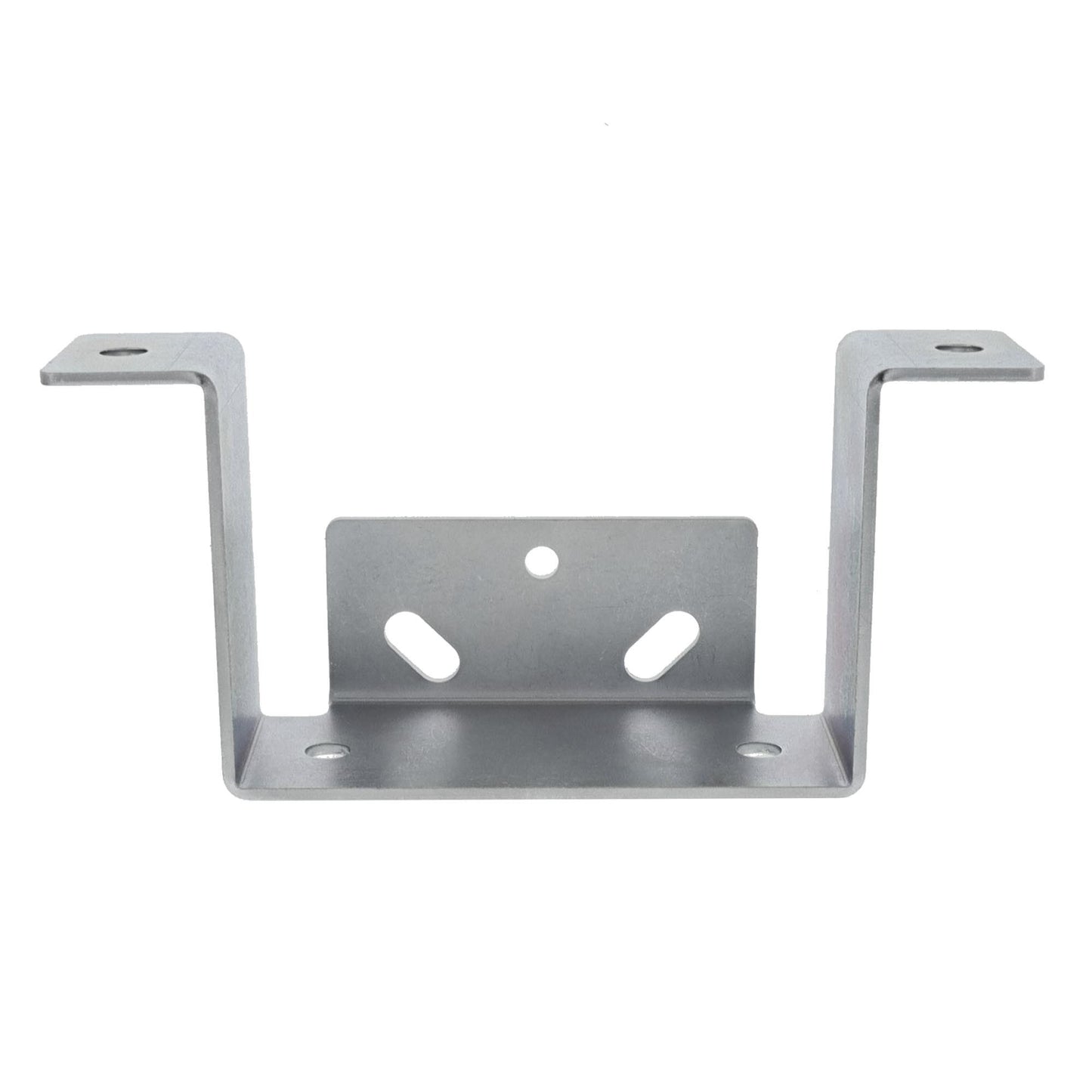

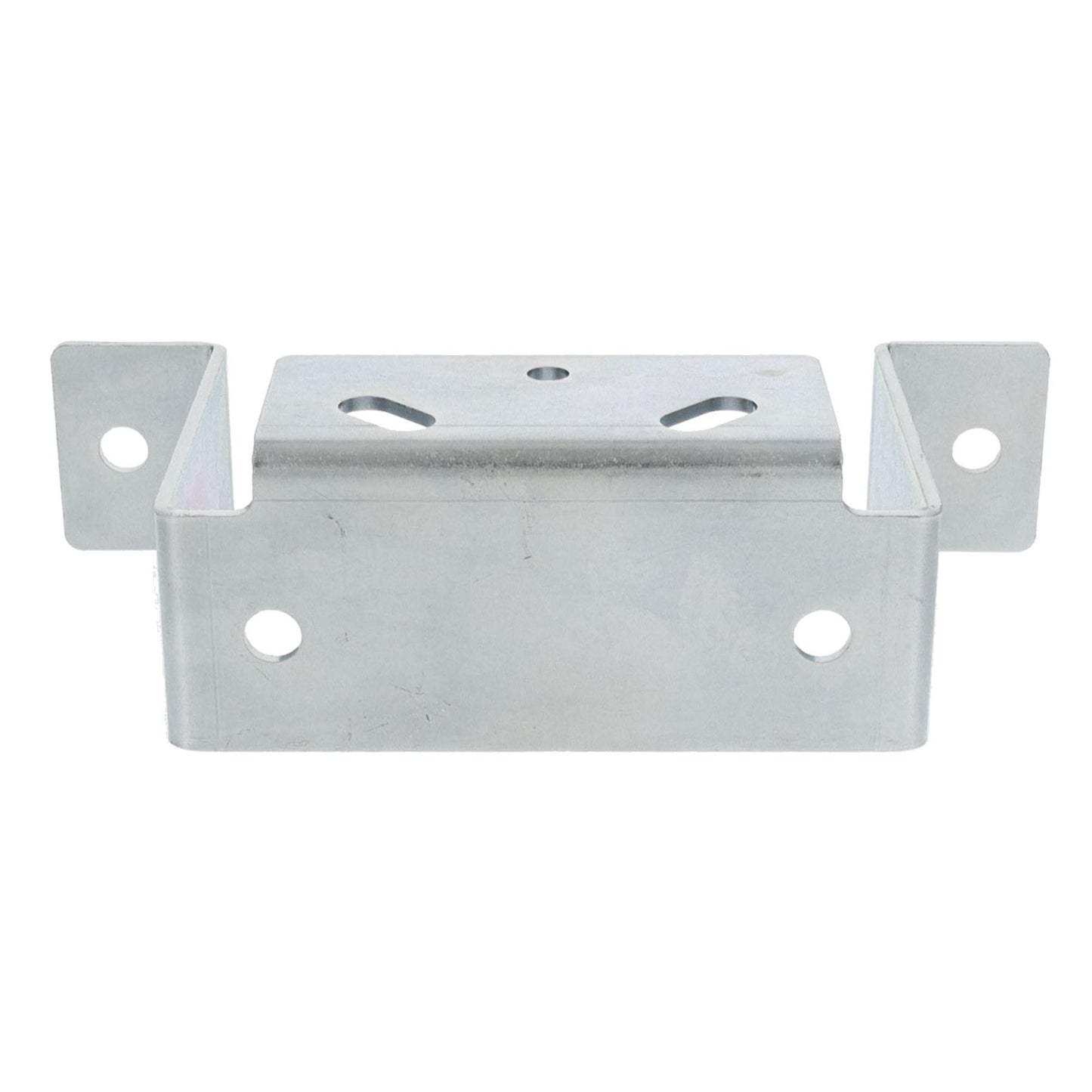

Bracket suitable for STEMA for clamp holder / parking support

Clamp mount for trailer supports

suitable for Stema OPTI 750, 850, among others

FT Series: FT 7.5-20-10.1B, FT 8.5-20-10.1B

Offer content:

1 bracket

very stable and durable version made of galvanized sheet steel

Description:

With many STEMA 750/850kg trailers, these brackets are required to attach clamp brackets for parking supports at the rear of the trailer.
The side holes on the frame are already there, the holder only has to be attached here and additionally screwed to the base plate.

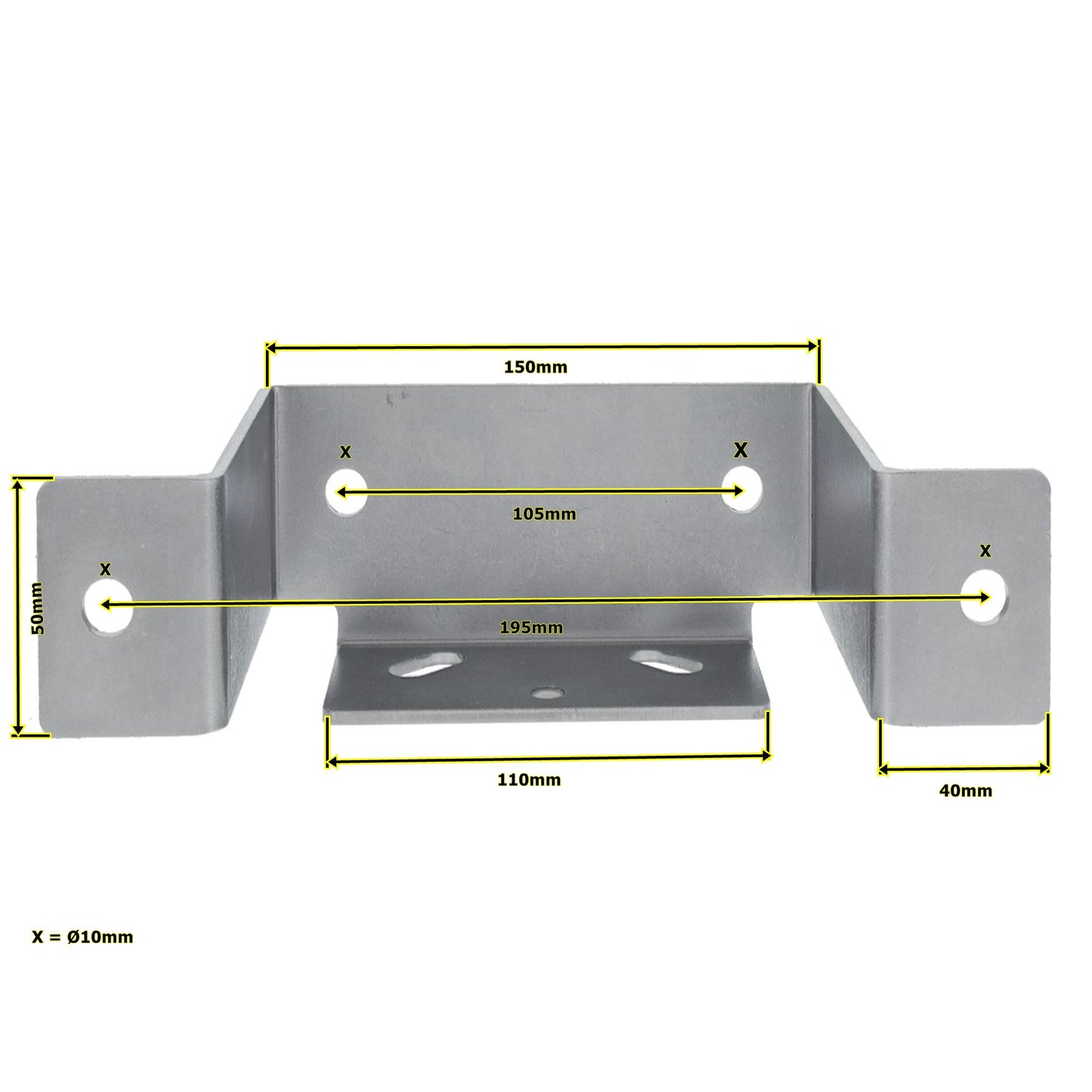

Bracket details:

• Material: sheet steel
• Finish: Galvanized
• Material thickness: 3.1mm
• Length: about 215mm
• Width: approx. 50mm/65mm over curve
• Height: about 100mm
• Distance between the holes for frame attachment: 195mm, Ø10mm
• Distance between the holes for clamp holders: 105mm, Ø10mm

Hints:

With some STEMA trailers that are sold by the "Bauhaus" company, additional spacer sleeves may have to be purchased. If in doubt, you must measure the distance from the frame to the side wall, this should be a maximum of 10cm.
Not suitable for the type B700/750 & high loader HL750.

If you have any questions, please contact us.
