Swivel support 60x60mm foldable 410-655mm FH 85 mm 1300kg with screw set

Infinitely adjustable unscrewing support T452022-AS

max. 1300kg

- For maximum stability and safety -

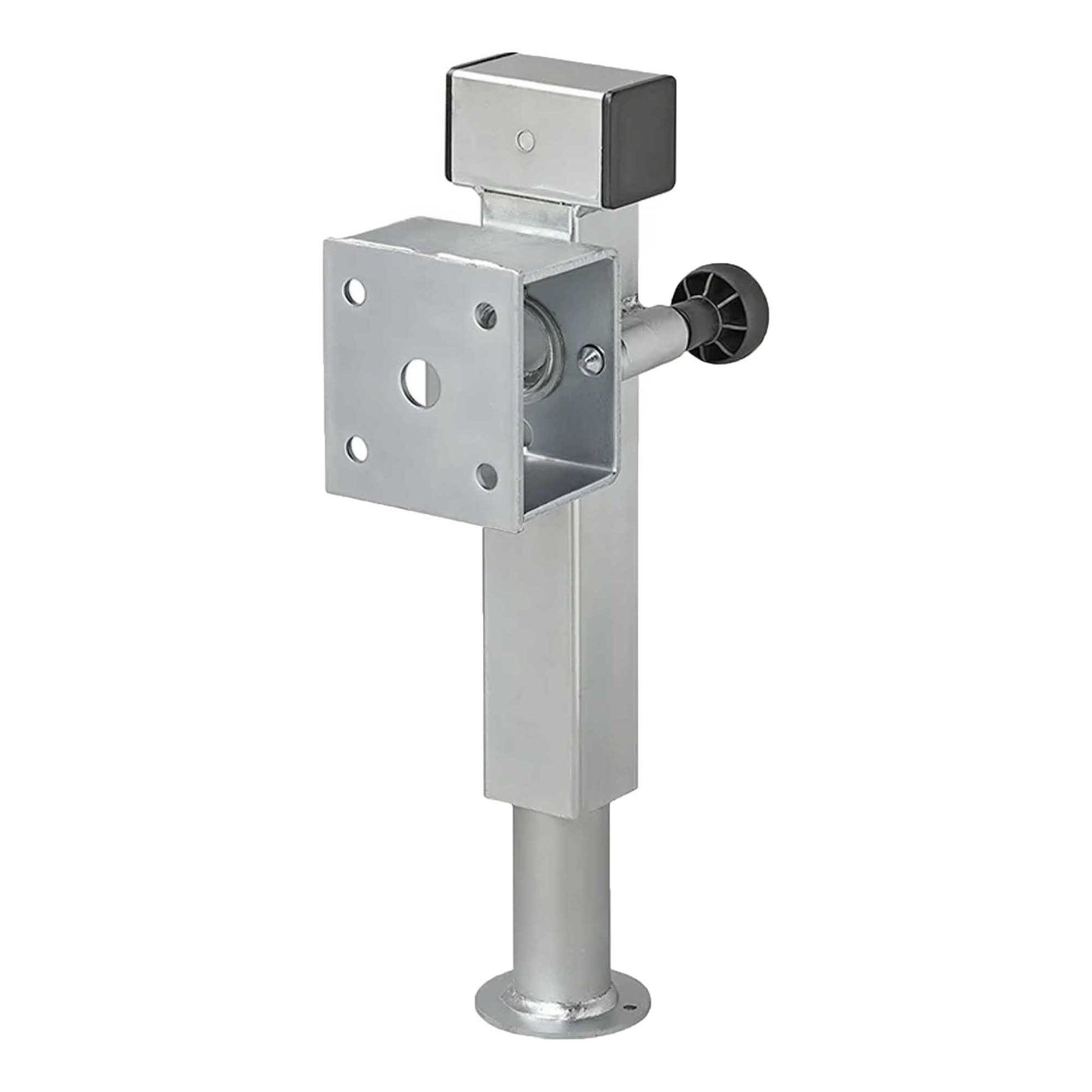

The T452022-AS swivel support ensures safe and stable positioning of trailers, regardless of the surface. With a robust outer tube of 60 x 60 mm, a continuously adjustable height from 410 to 655 mm and a load capacity of 1300 kg, it offers high stability and easy handling. Thanks to the tilting function, it can be folded up after assembly to save space.

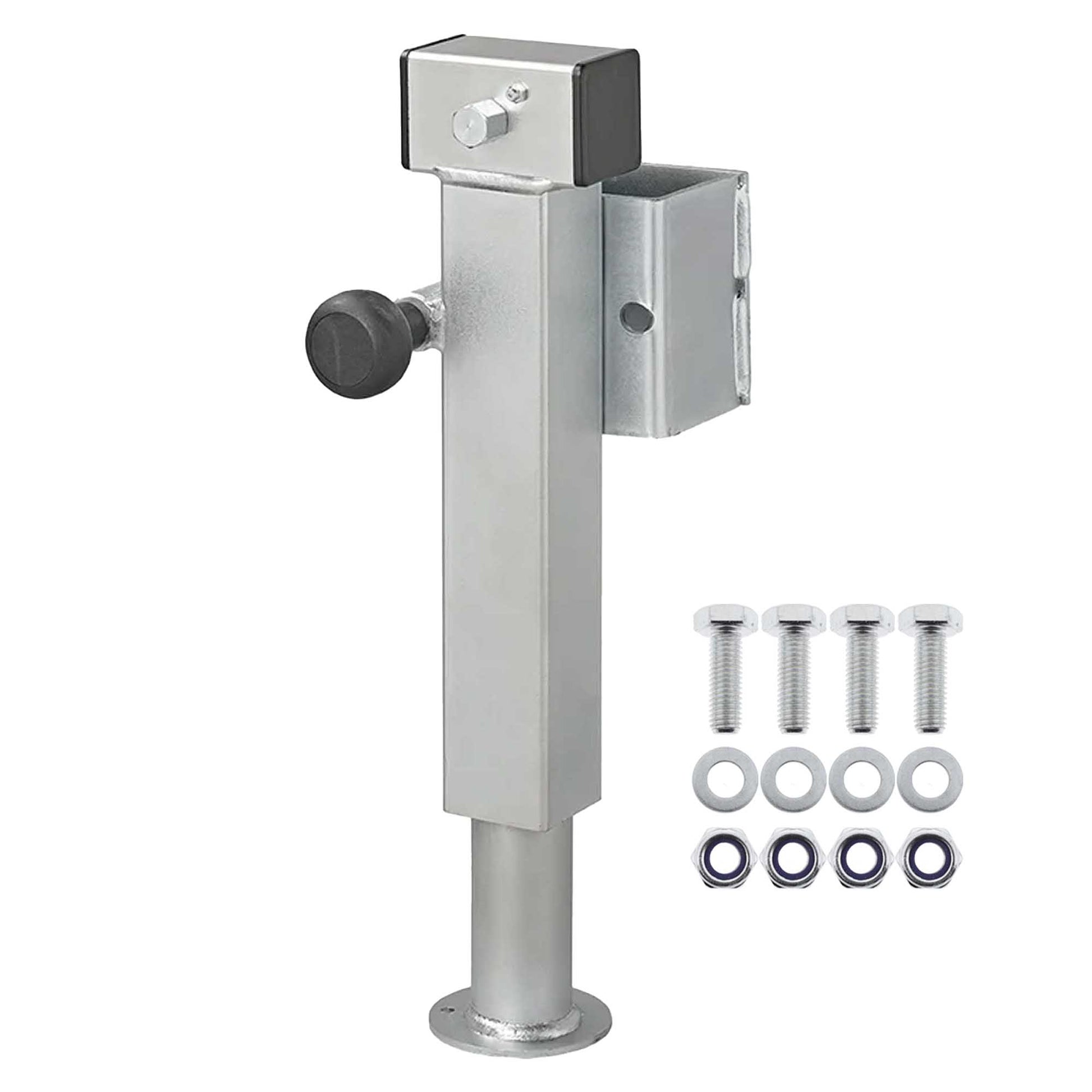

The support is simply attached to the chassis using four screws on the left or right (screws included) and can be continuously adjusted using a SW19 (spanner size 19mm) crank (crank not included). The quick-lock mechanism allows the support to be easily secured by pulling and turning the plastic knob.

Important features at a glance:

• Additional support for trailers : ensures stable positioning on any surface.

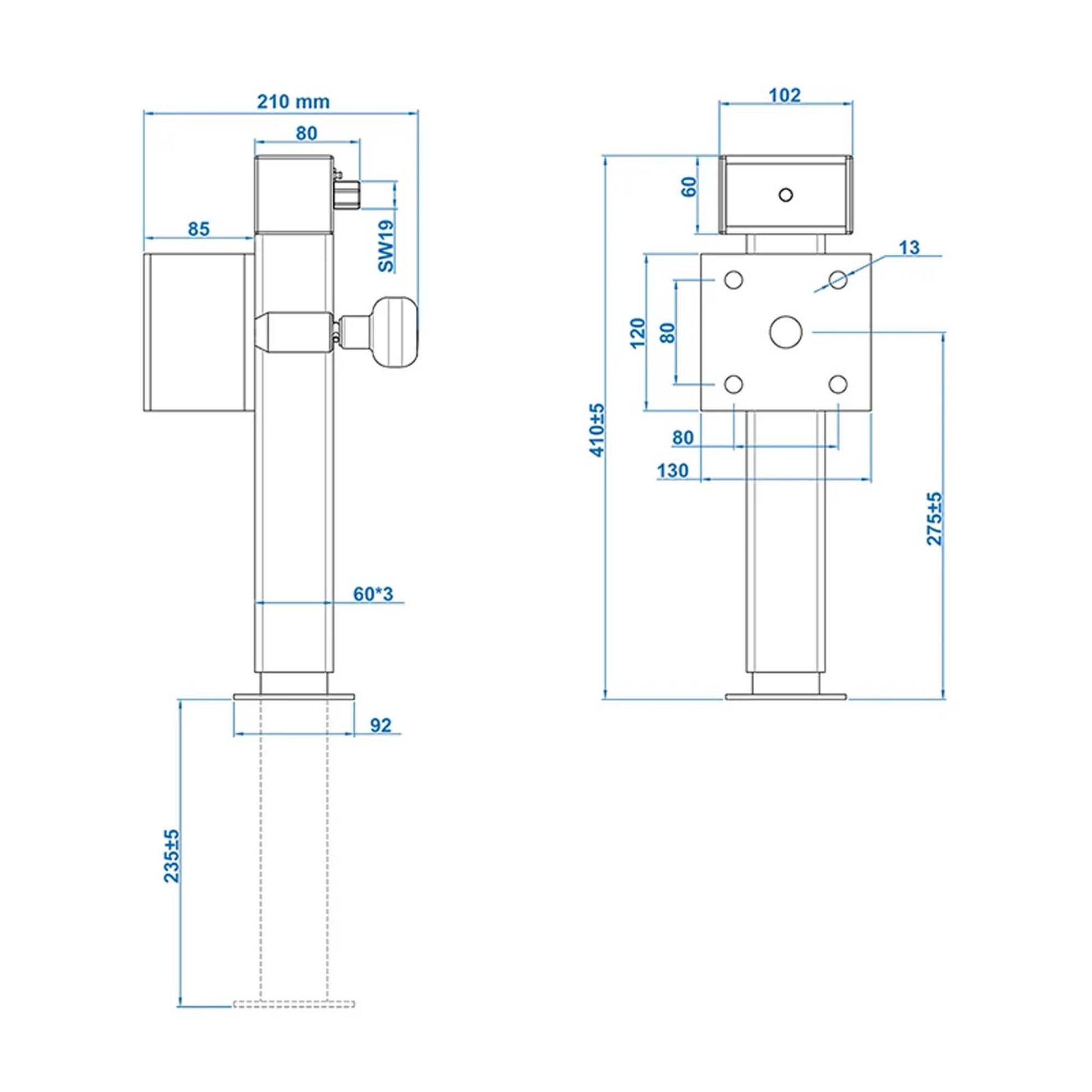

• Dimensions: outer tube 60 x 60 mm, height retracted 410 mm, height extended 655 mm.
• High load capacity: Max. load capacity of 1300 kg.
• Lightweight: Easy to handle at only 7.1 kg.

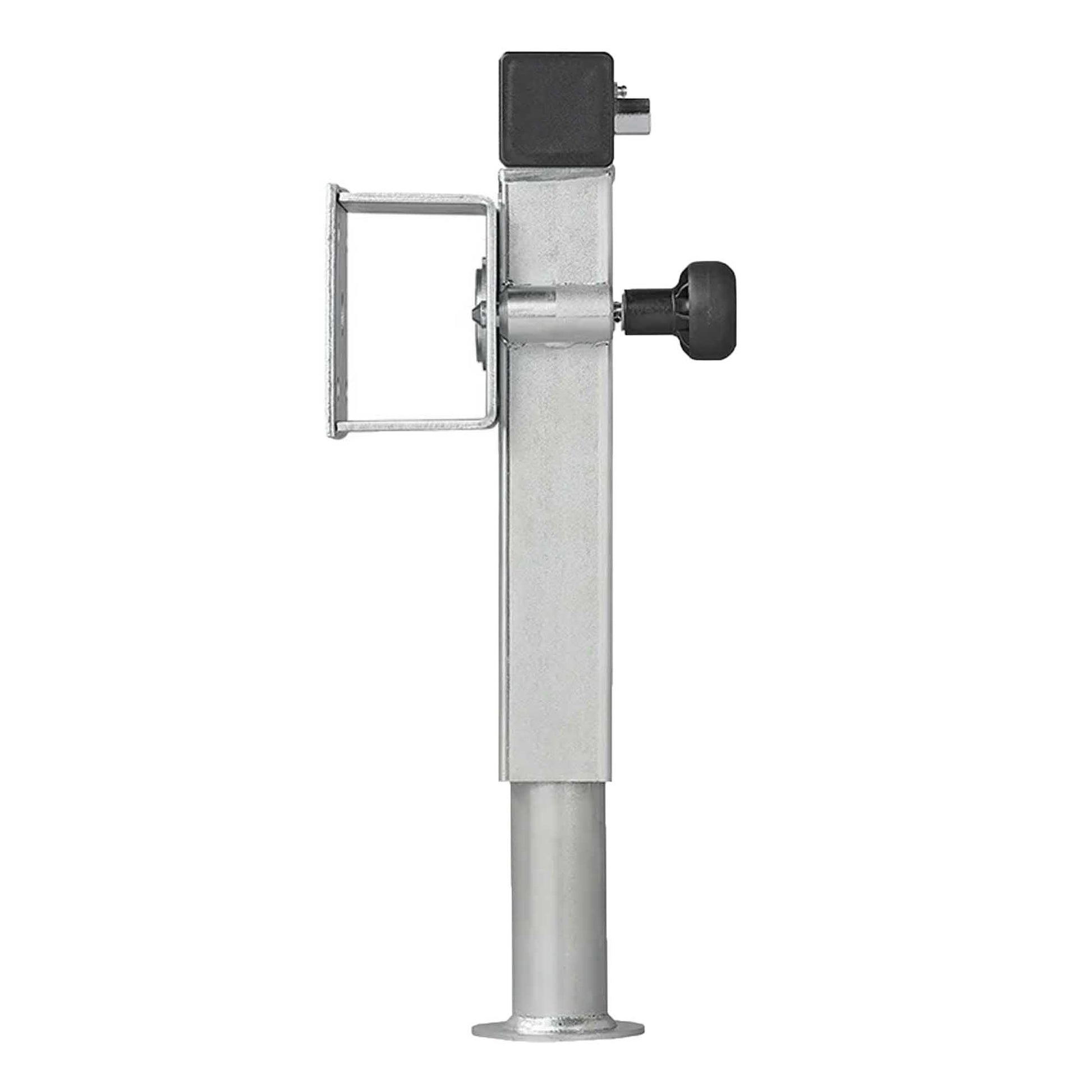

• Tiltable: Can be rotated to fold up after assembly.
• flange mounting dimensions: 80x80mm
• Flange mounting depth: 85 mm, ideal for many trailer types.

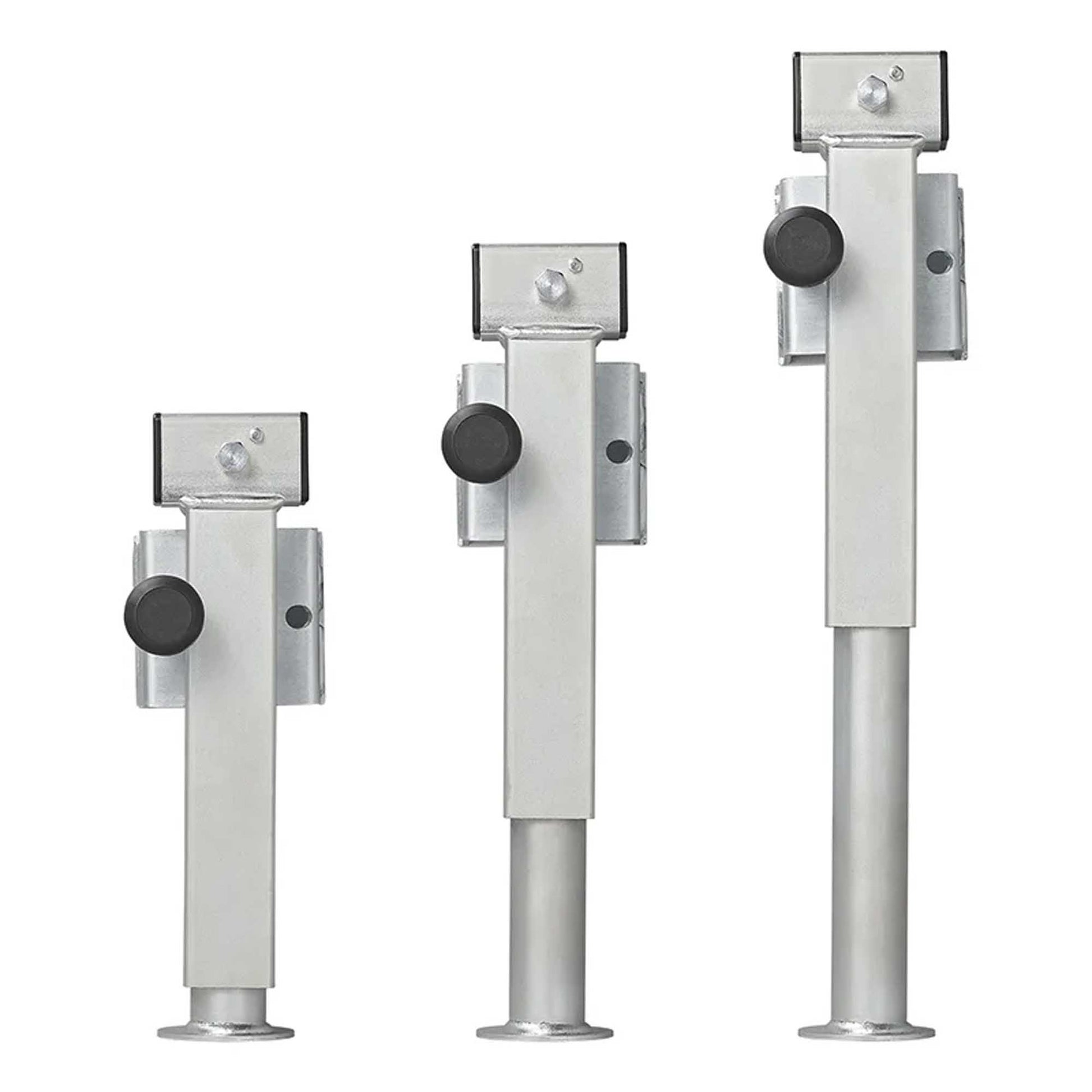

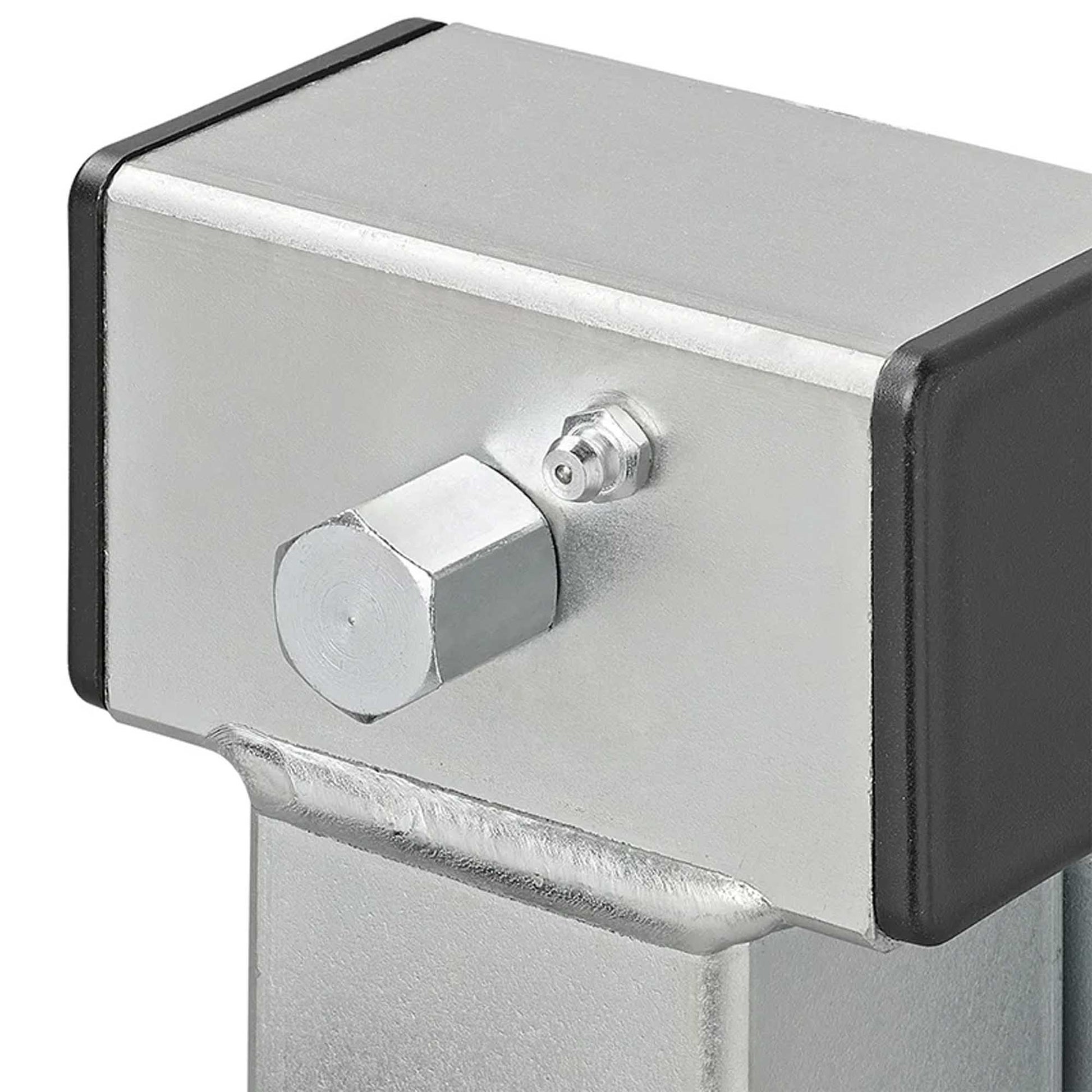

• Continuously adjustable: extendable length 235 mm, adjustable with SW19 crank

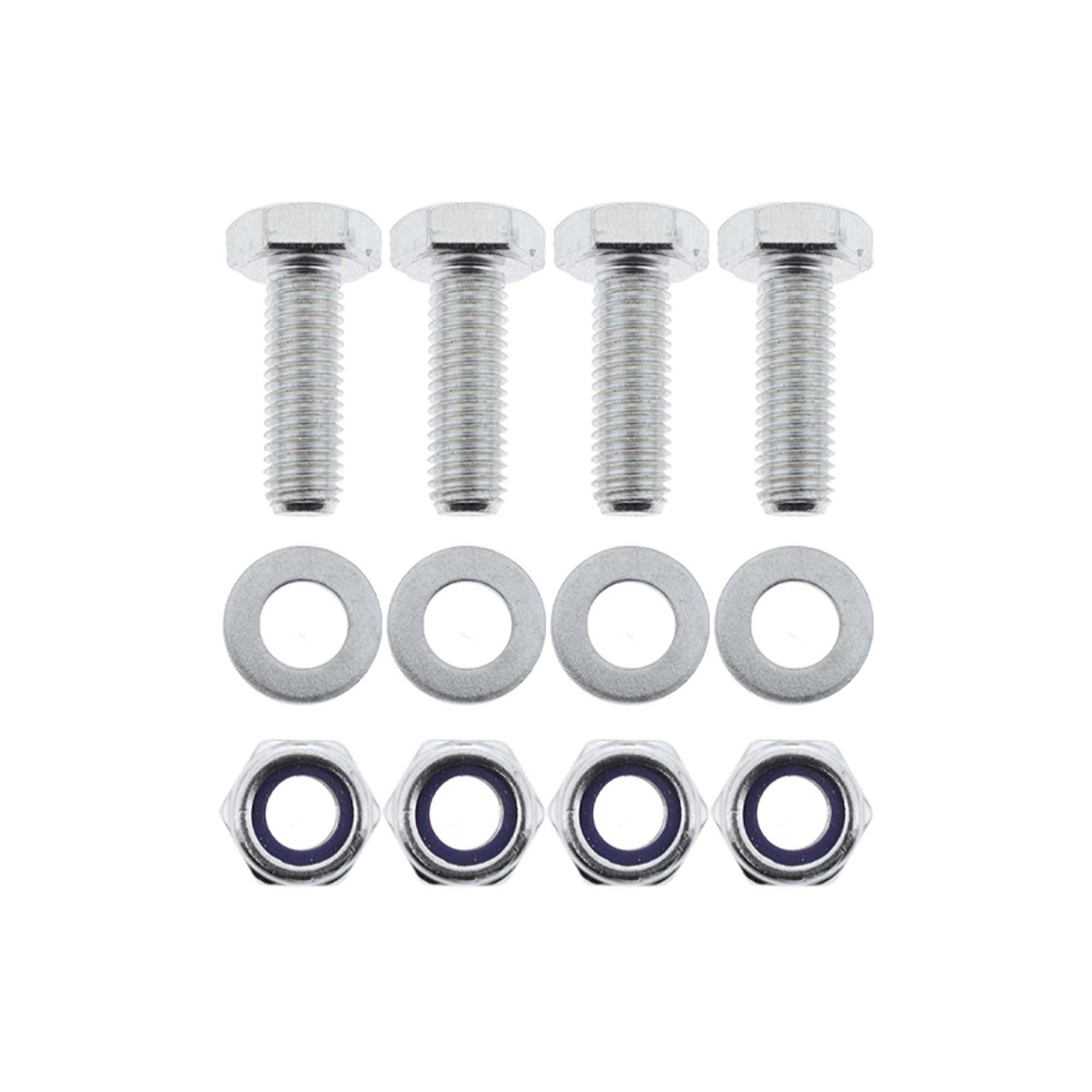

• Easy installation: Attachment with 4 screws, left or right on the chassis
• Robust material: steel and plastic for a long service life.
• Quick locking: Easy handling with plastic knob for quick adjustment and locking.

Made from durable steel and plastic, the T452022-AS is a reliable solution for maximum stability and easy handling on any trailer.
