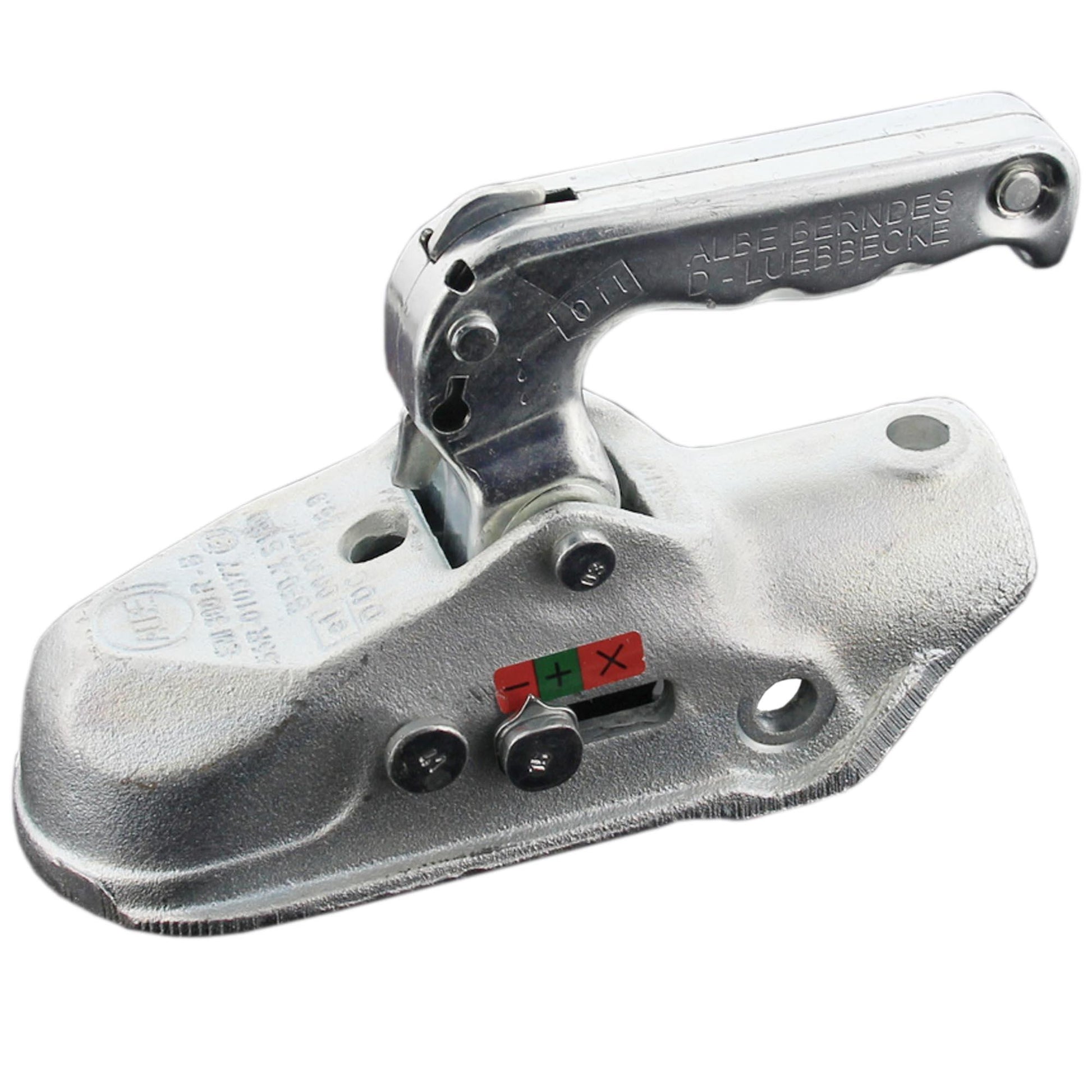

ALBE EM300RB hitch 3000kg

ALBE - Berndes ball coupling EM-300R version B

Ball diameter Ø50 mm

Type EM-300R version B

max. vertical load S = 150 kg

Description:

Ball couplings for trailers up to 3000 kg,
for Ø 50/51 mm drawbar round / drawbar, ball diameter Ø50mm

Details:

• max. total trailer weight GA = 3,000 kg
• max. vertical load S = 150 kg
• D value = 26.9 kN
• Weight approx. 2,200 g
• Drawbar connection: Ø 50/51 mm
• Cross-bolted (first hole horizontal - second hole vertical)
• Hole spacing: approx. 40 mm
• Bore Ø = 12.5 mm
• EC approval mark E1 00-0377
• Material: malleable iron
• with wear indicator

If you have any further questions, please contact us.
