AL-KO jockey wheel Compact 150 kg steel rim, solid rubber with clamp holder

1x AL-KO trailer jockey wheel with clamp holder

max. support load: 150kg

Solid rubber tires on steel rims

2 parts

Description :

This set contains 2 high quality accessories for your trailer you need,
if you simply want to increase your personal safety when loading and unloading your trailer.
Or you want to repair your trailer again

Contents:

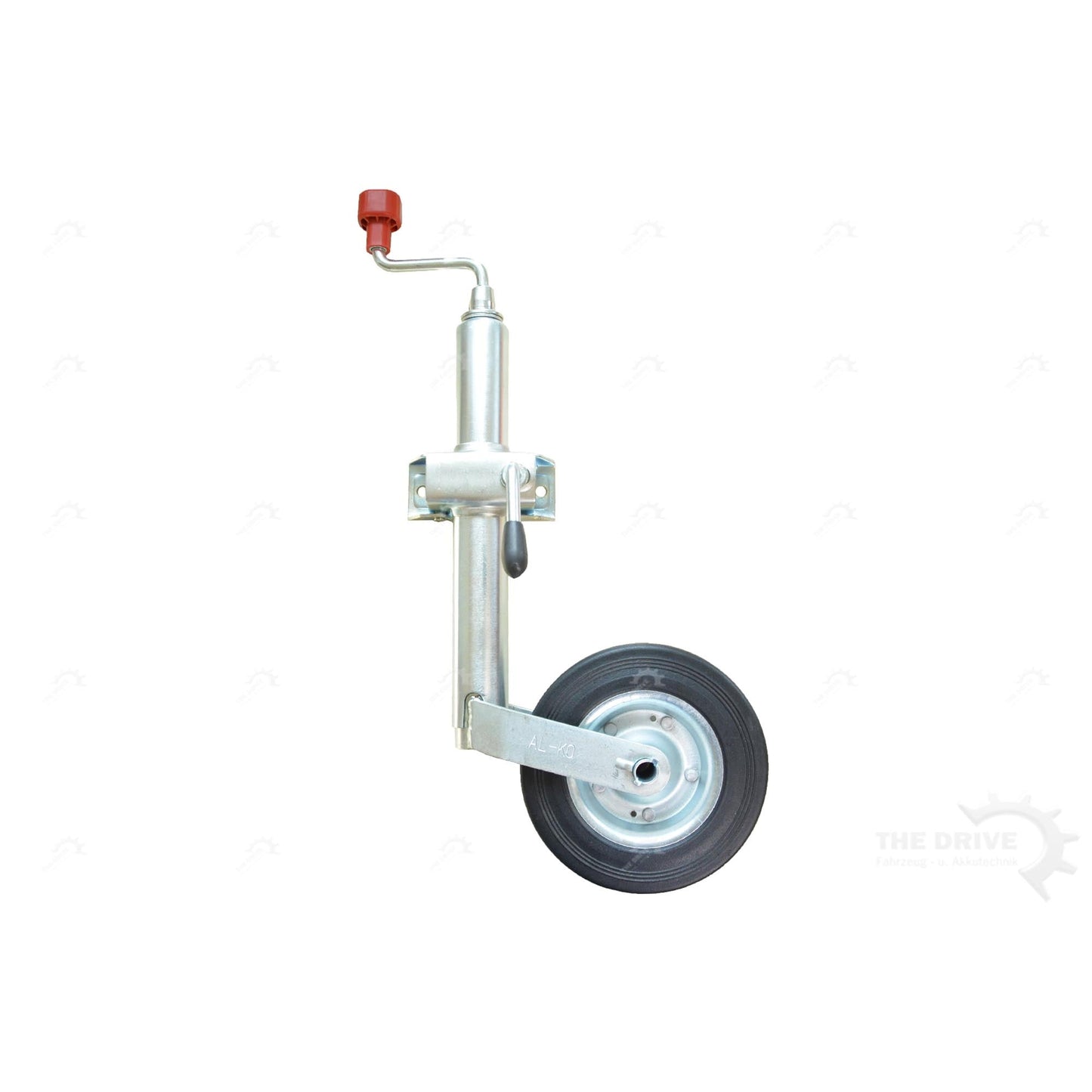

• 1 x AL-KO jockey wheel Compact 150 kg steel rim, solid rubber
• 1 x clamp holder for jockey wheel Ø 48mm

Jockey wheel details:

Support wheels belong to the support devices on central axle trailers, which the STVZO prescribes,
if the tongue load is more than 50 kg. They must be height-adjustable and captive.
They are equipped with wheels for maneuvering or parking the trailer.
It is mounted directly or with various brackets on the drawbar.

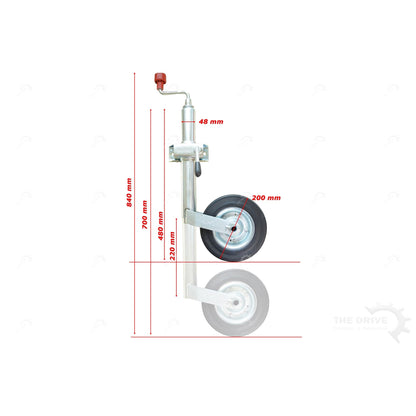

• Material: steel
• Tube Diameter: 48mm
• galvanized
• Load capacity static: 150kg
• Lifting height: 220mm
• Height: 480mm
• Rim: steel
• Wheel: 200 x 50 mm solid rubber
• Wheel bearing: plain bearing

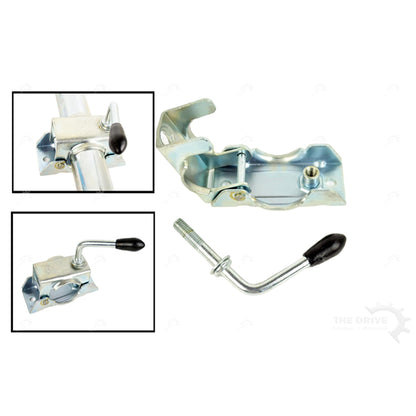

Jockey Wheel / Tube Support Clamp Bracket Details:

• For pipe diameter: Ø 48mm
• Fixing hole distance : 105 mm
• Material: steel
• Finish: Galvanized

If you have any further questions, please contact us.
